Ipg nlight uchun 6000W 8000W tolali lazerli chiqib ketish mashinasi

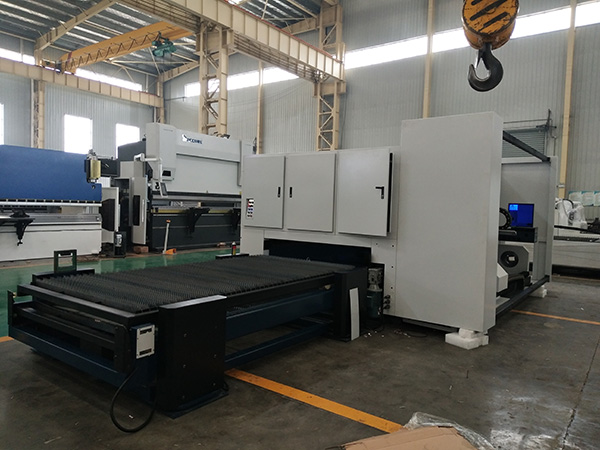

IPG uchun nurli 6000W 8000W tolali lazer chiqib ketish mashinasi

Xususiyatlar


Chiqish tezligi: 72m / min
Grafik formati Qo'llab-quvvatlanadigan: AI, DST, DWG, DXF, DXP, LAS
Ilova: Lazer chiqib ketish
Vaziyat: Yangi
Chiqib ketish qalinligi: 6mm
CNC yoki Yo'q: Ha
Sovutish tartibi: suv sovutish
Nazorat qilish dasturlari: cypcut controller
Kelib chiqishi: Anhui, Xitoy (Xalq Respublikasi)
Tovar nomi: ACCURL
Model raqami: 800W bo'lgan KJG-150300DT
Sertifikatlashtirish: Idoralar, ISO, SGS, UL
Lazer turi: AQShdan IPG tolali lazer generatori
Lazer to'lqin uzunligi: 1070 nm
Laser power output rating:800W
X-axis travel:1500mm
Y-o'qi bo'ylab sayohat: 3000 mm
Working table:Open design, fixed table
Driving mode:Double rack and pinion driving system
Format supported:PLT, DXF, AI etc
Position accuracy:0.05mm
Total Power consumption:10KW
Chet elda ishlab chiqarilgan uskunalarni sotish uchun xizmat ko'rsatuvchi muhandislar xizmat ko'rsatish imkoniyatiga ega

Asosiy xususiyatlar

1) Xitoyda eng yuqori hassasiyette bo'lgan aniq lazerle chiqib ketish mashinasi, yarim tonna kattaligi va 6 mm'lik engil po'latdan kesilgan kichik metall velosiped dizayni mumkin, bir daqiqa ichida 120 teshik kesilebilir.

2) 600 ℃ issiqlik bilan ishlov berish, pechda 24 soat sovutish, 8 metr devor frezeleme, deformatsiz 20 yil foydalanishga ishonch hosil qilish uchun to'g'ri CO2 himoya qilish manbai.

3) lazer elektr kabinining integratsiyalashgan dizaynini qo'llash, kichik maydonlarni qoplash, joyni tejash, minimalist dizayn.

4) Hurda avtomobil nosimmetrik dizayni, har ikki tomon ham chiqindilarni tozalashi mumkin; Mashinani qo'yib qo'yish uchun chap va o'ng talablar yo'q; Materialni chizishdan saqlaydigan pnevmatik qaltirash moslamasi.

5) 0,5-6 mm karbonli po'latni, 0,5-5mm zanglamaydigan po'latdan, galvanizli po'latdan, elektrolitik sink qoplamali po'latdan yasalgan po'latdan, silikon po'latdan va boshqa turdagi nozik metall plitalarni kesib olish uchun maxsus ishlatilgan. 1000W 3 mm alyuminiy va 2 mm misni kesishi mumkin.

Elyaf lazer metall chiqib ketish mashinasi texnik parametrlari

Model raqami

KJG-150300JH

KJG-150300JH

XJGC-150300JH

Lazer turi
IPG / Coherent / Raycus
Lazer quvvat

500W

1000W

2000W

Chiqib ketish maydoni
                                                          1500mmX3000mm
Ishchi stol tuzilishi

Ruxsat etilgan ishchi stol

Palet almashtirgich

Boshqarish tizimi

PMAC to'liq yopiq loop servo boshqaruv

Joylashuv aniqligi

                                                                    ± 0.04mm

Haydash rejimi

                                                       Ikkita tishli qayiqni haydash

Bo'ston / ishlov berish tezligi
72m / min / 36m / min
                      100m / min / 30m / min
Lazer boshi
                                            Precitec / Oltin lazer / lazer mexanizmi
Sovutish tizimi
                                          Er-xotin haroratli ikki tomonlama suvli chiller
Himoya tizimi
            Turini ochish
                                  Axlat muhofazasi
Qo'llab-quvvatlaydigan format
                                                 PLT, DXF, BMP, AI, DST, DWG va boshqalar.
Quvvatlantirish manbai
                                                                  380V / 220V
Jami quvvat
          7KW / 11KW
                              17KW / 8 ~ 22KW
Er maydoni
     5.6mx 3.2m
                                        9m x 4m
Standart taqsimlash
Size
4750mm(L) * 2250mm (W) * 1689 (D)
Og'irligi
3.2 T
Paket tafsilotlari
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
3.The outmost is wooden case with fixed formwork.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
